Dunet Flat Filament Knitted Shade Cloth (SSGB6E)
Dunet Flat Filament Knitted Shade Cloth (SSGB6E)
Dunet (SSGB6E) Knitted shade Cloth provides an ultimate protection against U.V Rays with maximum 90% Shade Factor under extreme weather conditions. Suitable for Fencing (Privacy Screen), Agriculture, Green Houses, Shelter at Public places.
Note:
The practical unit of lbf was expressed together with N (Newton). The conversion factor for N (Newton) from lbf is 4.44822. Test area 7.3 cm3
Available Colours:

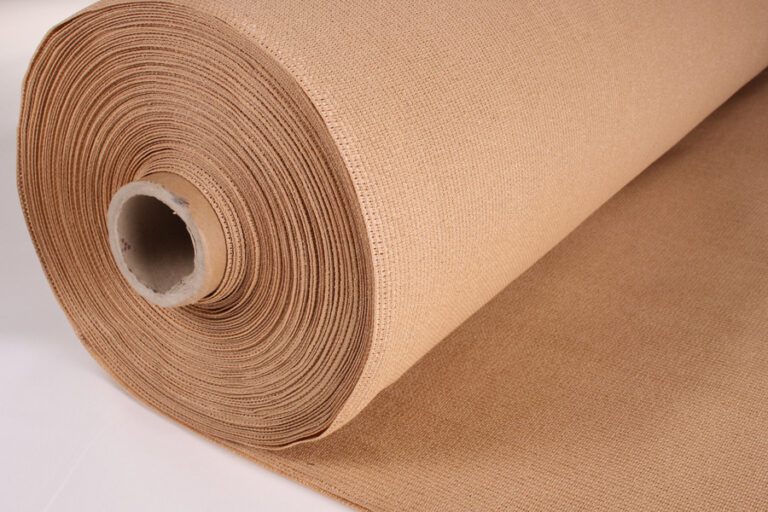

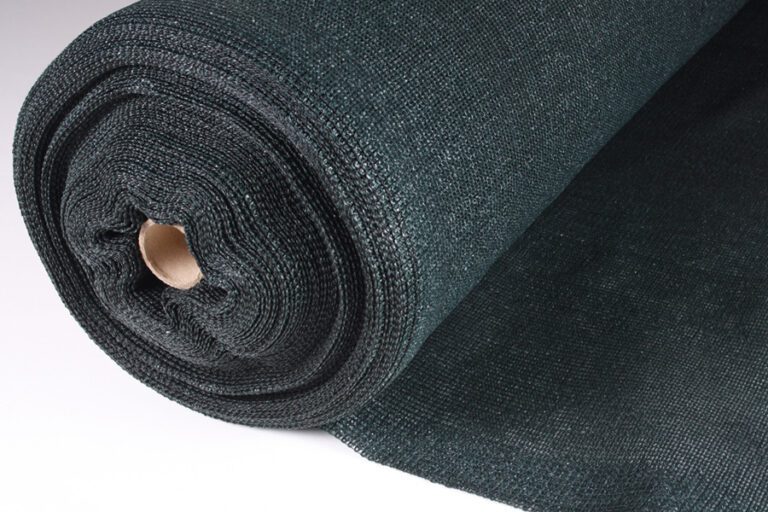

Dark Green and Beige
| TECHNICAL SPECIFICATIONS | ||
| Product | Dunet – Knitted Shade Cloth (SSGB6E) | |
| Material | H.D.P.E Tape/Mono | |
| Size | 3Mtr x 50Mtr | |
| Weight ASTM D 3776:2009 | 180 Gr / Sqm | |
| Shade Factor | 90% | |
| Tensile Strength ASTM D 5034:2009 C.R.E Grab Test Method | Warp | Weft |
| 513.7 N (115.5 lbf) | 611.9 N (137.6 lbf) | |
| Elongation ASTM D 5034:2009 C.R.E Grab Test Method | 49.3 N | 30.3 N |
| Tearing Strength ASTM D 5587:2008 C.R.E TRAPEZOID Method | 99.4 N | 113.0 N |
| Bursting Strength ASTM D 3786:2009 DIAPHRAM Method | 1627.9 kPa (236.1 psi) | |
| Puncture Resistance ASTM D 6797:2007 C.R.E Ball Bursting Method | 872.0 N (195.6 lbf) | |
